Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 900 x 400 x 1800 mm | |
|---|---|---|
| Upper cabinet internal height | 880 mm | |
| Adjustable shelf position count | 3 | |
| Upper cabinet shelf depth | 370 mm | |
| Single drawer external dimensions | 405 x 355 x 145 mm | |
| Single drawer internal usable dimensions | 380 x 330 x 120 mm | |
| Drawer handle length | 120 mm | |
| Frosted glass panel thickness | 5 mm | |
| Steel body panel thickness | 0.8 mm | |
| Door frame width | 60 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Net weight range | 75 kg | |
|---|---|---|
| Upper cabinet shelf static load capacity | 30 kg | |
| Drawer slide cycle life | 50000 cycles | |
| Surface abrasion resistance | 1000 cycles | |
| Recommended maximum loaded weight per cabinet | 350 kg | |
| Door hinge/slide cycle life | 40000 cycles | |
| Anti-tip load resistance | 450 N | |
| Structural warranty period | 5 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main cabinet frame | Cold-rolled steel sheet, electrostatic powder coated light grey finish | |
|---|---|---|
| Upper door panels | 5mm frosted semi-opaque tempered glass set in steel frames | |
| Adjustable shelves | 0.8mm thick cold-rolled steel, powder coated to match cabinet body | |
| Drawer bodies | 0.7mm thick cold-rolled steel, folded welded construction with integrated front pulls | |
| Drawer slides | Zinc-plated cold-rolled steel 3/4 extension telescopic slides | |
| Lock mechanism | Zinc alloy keyed cam lock, 2 keys per cabinet, locks both upper sliding doors | |
| Door handles | Recessed embedded steel pull handles, powder coated silver finish | |
| Vertical shelf rails | Punched cold-rolled steel strips with 25mm spacing increments | |
| Base plinth | 1.0mm thick folded steel, welded to cabinet frame for floor support | |
| Upper sliding door panels | 5mm frosted semi-opaque tempered glass, set in 0.8mm rolled steel door frames | |
| Adjustable upper shelves | 0.8mm thick cold-rolled steel, powder coated to match cabinet body, formed with 10mm turned-up edges to prevent item slippage | |
| Upper door handles | Recessed embedded chrome-plated steel pull handles, flush-mounted to door frame edges |
Adjustment / rotation / tilt / mobility / storage features

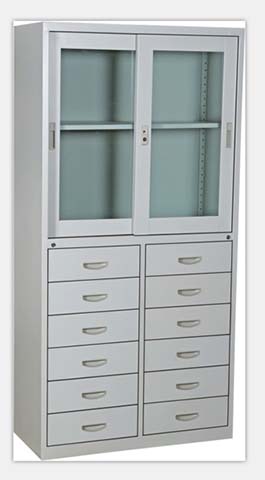

| Upper compartment access | Two horizontal sliding frosted glass doors, secured by central key lock, doors slide left/right to open without projecting into walkway | |
|---|---|---|
| Shelf adjustment | 2 removable steel shelves adjustable at 25mm vertical increments along punched side rails, supports flexible storage heights for documents or supplies | |
| Drawer storage | 12 equal-size individual drawers arranged in 2 vertical columns of 6, each fully extending for small item or document classification storage | |
| Security locking | Central cam lock for upper compartment prevents unauthorized access to stored items; lower drawers are non-locking for frequent-access storage | |
| Surface protection | Epoxy-polyester powder coat finish is scratch-resistant and easy to wipe clean, suitable for high-traffic office environments | |
| Storage classification | Upper glazed compartment is designed for A4/folio document binders and frequently referenced materials, lower drawers for small parts, stationery or archived records | |
| Leveling adjustment | Optional adjustable feet can be fitted to base plinth to compensate for uneven floor surfaces, standard hardware for commercial cabinet installation | |
| Shelf height adjustment | 2 removable steel shelves adjustable at 25mm vertical increments along punched side rails, supporting flexible storage heights for 320mm tall A4 binders or bulk supplies | |
| Drawer storage operation | 12 equal-size individual drawers arranged in 2 vertical columns of 6, each extending 270mm via telescopic slides for full access to small items or document classification storage | |
| Surface protection performance | Epoxy-polyester powder coat finish is scratch-resistant, disinfectant-safe, and easy to wipe clean for high-traffic office environments | |
| Storage classification layout | Upper glazed compartment is sized for A4/folio document binders and frequently referenced materials, lower 12 drawers for small parts, stationery or archived record sorting | |
| Floor leveling capability | Pre-punched mounting points on base plinth accept 16mm diameter adjustable feet with 15mm vertical adjustment range to compensate for uneven floor surfaces |
Verified carton / gross weight / assembly / loading data
| Packaged carton count | 1 | |
|---|---|---|
| Packaged carton dimensions | 960 x 460 x 1860 mm | |
| Packaged gross weight | 85 kg | |
| Packaged volume per unit | 0.82 CBM | |
| On-site assembly time | 20 minutes | |
| 20ft GP container loading quantity | 24 units | |
| 40ft HQ container loading quantity | 60 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
Recommended spaces / users / usage modes
| Corporate office storage | Suitable for administration and HR departments to store archived documents, stationery and office supplies, with lockable upper section for confidential materials | |
|---|---|---|
| Medical and clinic storage | Suitable for hospital wards or clinics to store medical records, dressings and small medical consumables, with easy-clean powder coat finish and classified drawers | |
| School and educational use | Suitable for teacher offices and administrative departments to store student records, teaching materials and stationery, with durable construction suitable for high-frequency use | |
| Workshop and warehouse use | Suitable for production facility offices to store tool accessories, inspection records and maintenance parts, with scratch-resistant surface and robust drawer structure | |
| Recommended placement | Position against flat load-bearing walls, leave 100mm clearance from walls for ventilation, avoid direct exposure to water or high-humidity environments to prevent surface corrosion | |
| Corporate office administrative storage | Suitable for administration and HR departments to store archived documents, stationery and office supplies, with lockable upper section for confidential personnel files | |
| Medical facility record storage | Suitable for hospital wards or clinics to store medical records, dressings and small medical consumables, with easy-clean powder coat finish compatible with disinfection protocols | |
| Educational facility storage | Suitable for teacher offices and school administrative departments to store student records, teaching materials and stationery, with heavy-duty construction for high-frequency daily use |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture - Part 2: Safety requirements, applicable for sharp edge, stability and load safety verification | |
|---|---|---|
| EN 14074-2:004 | Office furniture - Office tables and storage furniture - Test methods for strength, durability and stability | |
| EN 14074:2004 | Office furniture - Office tables and storage furniture - Test methods for strength, durability and stability |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable for structural strength, finish quality and dimensional tolerance verification of this steel cabinet | |
|---|---|---|
| GB/T 13667.1-2015 | Steel filing cabinets for office use - Part 1: General requirements, applicable for drawer operation, load capacity and stability testing | |
| GB 18584-2001 | Limit of harmful substances in wood furniture for indoor use, applicable for verification of powder coating emission compliance for indoor use | |
| GB/T 4893.8-2013 | Test of surface coatings of furniture - Part 8: Determination of abrasion resistance, applicable for powder coat durability verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for metal furniture, applicable for structural strength, finish quality and dimensional tolerance verification of this steel cabinet; 2. GB/T 13667.1-2015: Steel filing cabinets for office use - Part 1: General requirements, applicable for drawer operation, load capacity and stability testing; 3. GB 18584-2001: Limit of harmful substances in wood furniture for indoor use, applicable for verification of powder coating emission compliance for indoor use; 4. GB/T 4893.8-2013: Test of surface coatings of furniture - Part 8: Determination of abrasion resistance, applicable for powder coat durability verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
