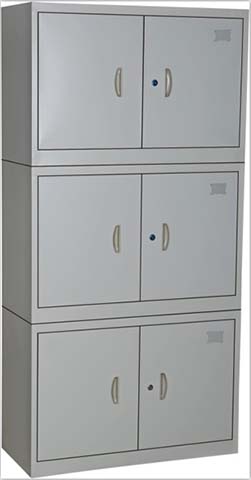

Product supplier3-Tier 6-Door Lockable Steel Storage Cabinet, 0.8mm thick cold-rolled steel sheet
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 900 × 400 × 1800 mm | |
|---|---|---|
| Single tier height | 600 mm | |
| Single door width | 440 mm | |
| Door thickness | 20 mm | |
| Handle length | 120 mm | |
| Label holder size | 80 x 50 mm | |
| Base plinth height | 50 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 85 kg | |
|---|---|---|
| Static load per internal shelf | 50 kg | |
| Total cabinet static load | 300 kg | |
| Lock load rating | 100 kg per door | |
| Door open angle | 110 degrees | |
| Surface abrasion resistance | 2000 cycles | |
| Available color options | 3 | |
| Internal shelf load width | 870 mm | |
| Internal shelf load depth | 370 mm | |
| Uniform static load per internal shelf | 50 kg |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet body panels | 0.8mm thick cold-rolled steel sheet | |
|---|---|---|
| Door panels | 0.8mm thick cold-rolled steel with folded reinforced edges | |
| External finish | Epoxy polyester powder coating, matte silver grey | |
| Door handles | Brushed zinc alloy pull handles | |
| Door locks | Keyed cam locks, zinc alloy housing | |
| Internal shelves | 0.8mm thick cold-rolled steel, fixed position | |
| Door hinges | Steel concealed butt hinges | |
| Label holders | Transparent plastic card slots | |
| Structural seams | Stacked bolted connection between tiers | |
| Cabinet carcass panels | 0.8mm thick 304 stainless steel sheet, brushed finish | |
| Back panel | 0.5mm thick 304 stainless steel sheet, spot-welded to carcass | |
| Edge trim | Black PVC edge trim, 2mm thickness, fitted around door perimeters |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Sectional locking | Each of the 3 tiers has an independent key lock on the right door, locking both doors per section to secure individual compartment contents | |
|---|---|---|
| Compartment storage | Each tier is divided into two equal internal bays by a central vertical divider, creating 6 separate storage zones | |
| Content labeling | Clear plastic label holder on upper right door of each tier to display compartment contents for easy inventory management | |
| Stacked assembly | Three separate cabinet sections bolt together vertically on site to form full-height unit, reducing transport volume | |
| Door operation | Pull handles mounted centrally on each door, with 110-degree opening swing to allow unobstructed access to internal shelves | |
| Floor protection | Raised integrated steel plinth lifts cabinet 50mm off floor, preventing door damage from floor moisture or impact | |
| Independent sectional locking | Each of the 3 tiers has an independent key lock on the right door, locking both doors per section to secure individual compartment contents with 100kg shear rating per lock | |
| 6-compartment separated storage | Each tier is divided into two equal internal bays by a 15mm thick central vertical divider, creating 6 separate lockable storage zones | |
| Integrated content labeling | Clear 80x50mm polycarbonate label holder on upper right door of each tier to display compartment contents for easy inventory management | |
| Knock-down stacked assembly | Three separate cabinet sections bolt together vertically on site using stainless steel fasteners, reducing transport volume by 40% compared to welded one-piece units | |
| Full access door operation | 120mm vertical pull handles mounted centrally on each door, with 110-degree opening swing to allow unobstructed access to internal shelves, rated for 50000 open/close cycles | |
| Floor and moisture protection | Raised integrated 50mm high stainless steel plinth lifts cabinet 50mm off floor, preventing door damage from floor moisture, impact or cleaning residue |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office archive rooms | Suitable for storing paper files, documents and office supplies, with independent locking tiers for department-separated document management | |
|---|---|---|
| Workshop and cleanroom storage | Suitable for storing tools, PPE and consumables in industrial or hygienic environments, with smooth powder-coated surface easy to wipe clean | |
| School and institution storage | Suitable for staff rooms, administrative offices and laboratory storage, with labeled compartments for sorted supply organization | |
| Small business back-of-house storage | Suitable for retail, restaurant and clinic back rooms storing administrative records and operational supplies, with heavy duty shelf capacity for mixed loads | |
| Recommended configuration | Pair with adjustable shelf accessories and master key system for multi-user facility management, to improve access control flexibility | |
| Office archive and record rooms | Suitable for storing paper files, confidential documents and office supplies, with independent locking tiers for department-separated document management and access control | |
| Food service and healthcare cleanroom storage | Suitable for storing PPE, medical consumables or food service supplies in hygienic environments, with non-porous brushed stainless steel surface that withstands daily sanitizer wiping | |
| School and institutional storage | Suitable for staff rooms, administrative offices and laboratory storage, with labeled compartments for sorted supply organization and 50kg shelf capacity for heavy textbook or equipment loads |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office furniture - Storage furniture - Part 2: Safety requirements, applicable for sharp edge, stability and lock safety acceptance | |
|---|---|---|
| EN 14073-3:2004 | Office furniture - Storage furniture - Part 3: Test methods for stability and structural strength, applicable for shelf load and door cycle performance validation | |
| EN 10088-2:2014 | Stainless steels - Part 2: Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for general purposes, applicable for stainless steel material grade verification |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable for dimensional accuracy, coating adhesion and structural stability acceptance of this steel storage cabinet | |
|---|---|---|
| GB/T 13668-2015 | Specification for steel filing and storage cabinets, applicable for lock performance, shelf load rating and structural durability acceptance | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, reference for coating volatile organic compound limits on steel furniture surfaces | |
| GB/T 24511-2017 | Stainless steel plate, sheet and strip for pressure equipment, reference for material grade verification of cabinet stainless steel panels |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for metal furniture, applicable for dimensional accuracy, coating adhesion and structural stability acceptance of this steel storage cabinet; 2. GB/T 13668-2015: Specification for steel filing and storage cabinets, applicable for lock performance, shelf load rating and structural durability acceptance; 3. GB 18584-2001: Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, reference for coating volatile organic compound limits on steel furniture surfaces; 4. GB/T 24511-2017: Stainless steel plate, sheet and strip for pressure equipment, reference for material grade verification of cabinet stainless steel panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
