PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	900 × 400 × 1800 mm
Individual compartment door width	270 mm
Individual compartment door height	420 mm
Ventilation grille size per door	80 x 60 mm
Card holder slot size per door	90 x 50 mm
Steel sheet thickness for door panels	0.8 mm
Steel sheet thickness for main frame and partitions	0.6 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per unit	65 kg
Static load capacity per individual compartment	25 kg
Total storage capacity across all compartments	475 L
Recommended number of users	12
Door hinge cycle durability	50000 open/close cycles
Lock mechanism cycle durability	20000 lock/unlock cycles
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main body and frame	Cold-rolled steel sheet, phosphate treated prior to coating
Exterior finish	Epoxy-polyester hybrid powder coat, light grey matte finish
Locker doors	Cold-rolled steel sheet with folded edge reinforcement
Internal vertical/horizontal partitions	Cold-rolled steel sheet, welded to main frame
Door hardware	Zinc-alloy recessed handle with integrated cam lock, 2 keys per lock
Door hinges	Steel pin hinges, welded to door and frame
Ventilation grilles	Punched steel openings integrated into lower section of each door
Identification card holders	Recessed plastic or steel label slots fixed to upper section of each door
Base plinth	Folded steel frame forming raised floor support
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Individual compartment locking	Each door is fitted with an independent key-operated cam lock that secures the door closed when engaged, with 2 keys provided per compartment
Ventilation for each compartment	Punched vent grilles at the lower section of every door allow air exchange to prevent odour buildup from stored clothing or items
User identification	Recessed card holders at the top of each door accommodate paper labels for user name, number or department assignment
Door operation	Each door pivots outward 180 degrees on pin hinges to provide full unobstructed access to the compartment interior
Storage application	Each compartment is sized to store personal items including work uniforms, bags, shoes, small personal effects and folded outerwear
Structural stability	Welded frame construction with bolt-tightened knock-down connections eliminates wobble when anchored or placed on level flooring
Surface maintenance	Powder-coated smooth surface resists common stains and can be cleaned with standard non-abrasive household or commercial cleaning agents
Single locker compartment internal dimensions	280 x 370 x 420 mm
Locker base plinth height	100 mm
Integrated handle and lock assembly height	120 mm
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping packages	1
Shipping carton dimensions	950 x 450 x 1100 mm
Gross shipping weight	72 kg
Shipping volume per unit	0.47 CBM
Assembly time per unit	60 minutes
20ft container loading quantity	58 units
40ft HC container loading quantity	142 units
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office staff changing areas	Suitable for office buildings to provide dedicated personal storage for employees to store bags, outerwear and personal effects during work hours
Factory and workshop staff rooms	Durable steel construction withstands high-traffic industrial environments to store work uniforms, PPE and personal items for shift workers
School and educational institution locker rooms	Ideal for secondary schools, colleges and training centres to assign individual lockers to students for book, bag and sports equipment storage
Gym and sports facility changing rooms	Ventilated compartments support storage of gym clothing, towels and footwear while allowing air flow to reduce dampness and odour
Public service and front-of-house areas	Suitable for public facilities including libraries, community centres and transport hubs to provide temporary secure storage for visitors and staff

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office storage furniture safety requirement	EN 14073:2004
Metal furniture surface coating performance	EN 13129:2005

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Storage cabinet strength and durability	ANSI/BIFMA X2019

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

General technical requirement for metal furniture	GB/T 3324
Steel furniture coating adhesion requirement	GB/T 9286
Hardware durability requirement for furniture	GB/T 15102

Standardized tender description text

This product must meet the following technical requirements:
1. General technical requirement for metal furniture: GB/T 3324;
2. Steel furniture coating adhesion requirement: GB/T 9286;
3. Hardware durability requirement for furniture: GB/T 15102;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SL-12D-3COL-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SL-12D-3COL-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SL-12D-3COL-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

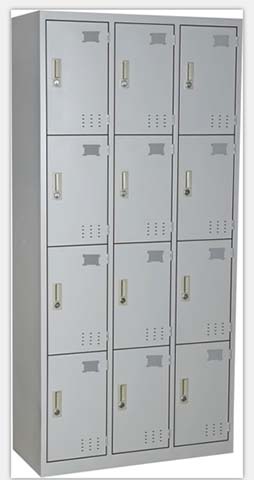

The 12-Door 3-Column Steel Personnel Storage Locker (model SL-12D-3COL-001, unbranded) is a purpose-built steel storage solution aligned with standard industry dimensions for multi-door personnel lockers. Its visual layout follows a symmetrical 3-column, 4-row configuration, with a uniform matte light grey epoxy-polyester hybrid powder-coated finish. Each individual compartment door features a recessed card holder slot at the upper section for user identification, a punched steel ventilation grille at the lower section for r exchange, and a recessed zinc-alloy handle with an integrated cam lock positioned for ergonomic access. The unit sits on a rsed folded steel base plinth that elevates the cabinet above floor level, with clean, strght frame lines and evenly spaced door gaps that create a streamlined, professional appearance suitable for high-visibility shared spaces. Constructed from cold-rolled steel, the unit uses 0.8mm thick steel sheet for door panels with folded edge reinforcement to resist bending, and 0.6mm thick steel sheet for the main frame and internal partitions, which are welded to the frame to form 12 separate, fully enclosed compartments. All steel components receive phosphate treatment prior to coating for standard corrosion resistance, with steel pin hinges welded directly to doors and the main frame to support long-term use. Each door pivots outward 180 degrees to provide unobstructed access to the compartment interior, with a 50,000-cycle hinge durability rating and 20,000-cycle lock durability rating suited to regular dly access. Functionally, every compartment is fitted with an independent key-operated cam lock, with two keys provided per lock to secure personal belongings. The integrated punched ventilation grilles enable consistent r exchange to reduce odour buildup from stored clothing, footwear or damp items, while the recessed card holders accept paper labels to mark assigned users by name, number or department. Each compartment supports a 25kg static load, sufficient to hold work uniforms, bags, shoes, folded outerwear, small personal effects or sports equipment, with a total usable storage volume of 475L across the entire unit. The smooth powder-coated surface resists common stns and wipes clean easily with non-abrasive cleaning agents, while the welded frame with knock-down bolted connections delivers stable, wobble-free performance when placed on level flooring. This locker is well suited for a wide range of commercial and residential-adjacent shared spaces, including office staff changing areas, factory and workshop staff rooms, secondary school and college locker rooms, gym and sports facility changing areas, and public service spaces such as libraries, community centres and transport hubs, where assigned or temporary secure personal storage is required for 12 individual users per unit. For procurement planning, note that the unit ships as a single flat-packed package, with an 60-minute assembly time for two people using standard hand tools. Buyers should confirm exact material specifications, hardware details and finish composition with suppliers prior to final purchase, as some construction details reflect standard industry configurations for this product category rather than verified unit-specific measurements.

12-Door 3-Column Steel Personnel Storage Locker Specifications
