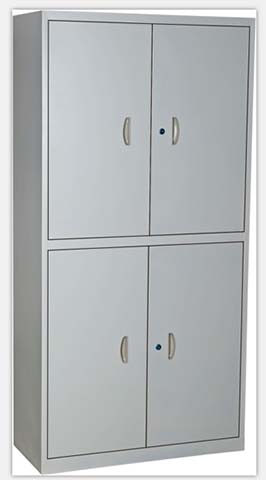

Product supplierLight Gray Steel Double-Section 4-Door Locking Storage Cabinet, Cold-rolled steel sheet with epoxy polyester powder coating
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 900 × 400 × 1800 mm | |
|---|---|---|
| Upper compartment internal height | 850 mm | |
| Lower compartment internal height | 830 mm | |
| Single door panel dimensions | 420 x 820 mm | |
| Handle length | 110 mm | |
| Base plinth height | 60 mm | |
| Middle horizontal divider width | 900 mm | |
| Door panel thickness | 0.8 mm | |
| Body frame sheet thickness | 0.7 mm | |
| Internal usable depth | 370 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 52 kg | |
|---|---|---|
| Static uniform load per compartment shelf | 50 kg | |
| Total cabinet static load capacity | 200 kg | |
| Maximum individual file box weight per level | 25 kg | |
| Lock cycle durability | 10000 cycles | |
| Door hinge opening angle | 110 degrees | |
| Hinge cycle durability | 50000 cycles | |
| Anti-tip restraint load rating | 100 kg | |
| Powder coating scratch resistance | 2H pencil hardness | |
| Shelf Distributed Load | 30 kg/shelf |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet body panels | Cold-rolled steel sheet with epoxy polyester powder coating | |
|---|---|---|
| Door handles | Brushed plated zinc alloy vertical pull handles | |
| Door locks | Brass keyed cylinder locks, keyed to differ as standard | |
| Door hinges | Cold-rolled steel external butt hinges, 2 hinges per door | |
| Middle/vertical dividers | Same cold-rolled steel as body panels, welded to frame for structural rigidity | |
| Internal shelves | 0.7mm cold-rolled steel adjustable shelves, 4 shelves included as standard (2 per compartment) | |
| Surface coating | Lead-free epoxy powder coat, 80μm film thickness | |
| Base plinth | Folded cold-rolled steel welded to cabinet bottom frame | |
| Back panel | 0.5mm cold-rolled steel sheet, spot-welded to rear frame edges | |
| Shelf support clips | Zinc-plated steel shelf clips, 4 clips per shelf | |
| Door edge seams | Folded steel return edges, 12mm width | |
| Anti-tip hardware kit | Included steel wall anchor bracket and mounting screw set |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Independent compartment locking | Upper and lower compartments each have separate keyed locks, allowing tiered access control for stored items | |
|---|---|---|
| Adjustable shelf positioning | Punched uprights inside each compartment allow shelf height adjustment at 32mm increments to accommodate items of varying heights | |
| Full-swing door access | Hinged doors open outward to 110 degrees to provide unobstructed access to full compartment width and depth | |
| Reinforced door structure | Each door panel has folded edge flanges to prevent flexing and reduce edge sharpness | |
| Raised base protection | Integral base plinth elevates cabinet 60mm above floor level to prevent moisture damage from floor cleaning | |
| Smooth door operation | Hinges are factory-lubricated to ensure squeak-free opening and closing over service life | |
| Dust-resistant enclosure | Full-length contact seals at door meeting stiles and perimeter door gaps reduce dust ingress into stored contents, suitable for long-term document archival storage | |
| Anti-tip safety | Included wall anchor bracket installs between cabinet top rear and wall structure, providing 100kg pull-out resistance to prevent forward tipping when fully loaded doors are fully extended | |
| Key retention feature | Locks retain keys when doors are unlocked to prevent key loss during routine access to cabinet contents, with 2 duplicate keys provided per lock for administrator backup | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Shipping carton dimensions | 940 x 440 x 1840 mm | |
|---|---|---|
| Gross shipping weight | 58 kg | |
| Shipping volume per unit | 0.76 CBM | |
| Assembly time (KD configuration) | 30 minutes | |
| 20ft GP container loading quantity | 36 units | |
| 40ft HQ container loading quantity | 90 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| General office document storage | Suitable for open plan offices, administrative departments and HR zones to store A4/FC files, office supplies and archived records, with lockable sections to protect confidential materials | |
|---|---|---|
| Industrial and workshop storage | Durable steel construction is suited for factory offices, maintenance rooms and warehouse admin areas to store tools, safety documentation and operational supplies | |
| Educational facility storage | Appropriate for school staff rooms, administration offices and library back-of-house areas to store student records, teaching materials and stationery | |
| Healthcare facility storage | Smooth non-porous powder coated surface allows easy cleaning for clinic and hospital administrative areas to store patient files, medical supplies and PPE | |
| Small business and retail storage | Ideal for small office back rooms, retail stock rooms and coworking spaces to provide high capacity, secure storage with minimal floor footprint | |
| Government and public sector storage | Lockable double-section design meets basic secure storage requirements for government service offices, postal stations and community centers | |
| Record archive room storage | Suitable for on-site archive rooms with 200kg total load capacity supporting long-term storage of archived legal and financial documents, adjustable shelves accommodating variable file box sizes |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for metal furniture | specifies dimensional tolerance, structural strength, and surface finish requirements applicable to steel office storage cabinet acceptance | |
|---|---|---|
| GB/T 13667.1-2013 Steel storage cabinets for office use | specifies performance requirements for lock, hinge, and shelf load ratings relevant to this product category | |
| GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | Applicable standards and test results require confirmation |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for metal furniture: specifies dimensional tolerance, structural strength, and surface finish requirements applicable to steel office storage cabinet acceptance; 2. GB/T 13667.1-2013 Steel storage cabinets for office use: specifies performance requirements for lock, hinge, and shelf load ratings relevant to this product category; 3. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture: Applicable standards and test results require confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
