Automatic mm / inch conversion · Core engineering specifications

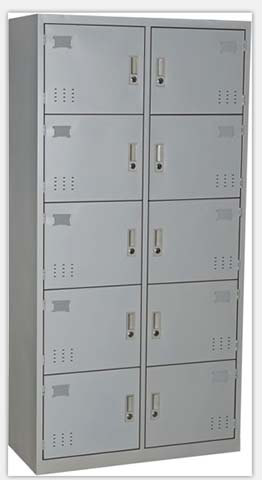

| Overall dimensions | 900 x 400 x 1800 mm | |
|---|---|---|
| Single compartment internal dimensions | 400 x 380 x 340 mm | |
| Door panel thickness | 0.8 mm | |
| Cabinet side/back panel thickness | 0.7 mm | |
| Ventilation perforation diameter | 6 mm | |
| Label holder size per door | 90 x 60 mm | |
| Bottom compartment clearance from floor | 100 mm | |
| Door opening clearance angle | 110 degrees | |
| Internal shelf count per compartment | 0 | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Product net weight | 72 kg | |
|---|---|---|
| Static load capacity per compartment | 25 kg | |
| Recommended maximum user count | 10 | |
| Door hinge cycle rating | 50000 open/close cycles | |
| Lock cylinder durability | 20000 key insert/remove cycles | |
| Surface scratch resistance rating | 2H | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Cabinet body shell | 304 stainless steel sheet, brushed finish, welded corner construction | |
|---|---|---|
| Door panels | 0.8mm thick 304 stainless steel, reinforced folded edge | |
| Ventilation panels | Integral punched stainless steel on lower door section, 3 columns of 6 holes per door | |
| Locking hardware | Zinc alloy keyed cam locks, 2 keys per lock, chrome plated finish | |
| Door hinges | Stainless steel concealed pin hinges, welded to cabinet frame | |
| Label holders | Recessed stainless steel card slots, welded to upper door section | |
| Handles | Integrated recessed stainless steel pull handles, formed as part of door panel | |
| Base plinth | Folded stainless steel closed base, welded to cabinet bottom | |
| Door edge trim | Continuous black magnetic door seal gasket | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Individual compartment locking | Each door is secured by an independent keyed cam lock, supplied with 2 unique keys per compartment | |
|---|---|---|
| Passive ventilation | Every door features a punched perforated vent grid at the lower section to allow air circulation and prevent odor buildup for stored clothing | |
| User identification | Each door has a recessed label card holder at the upper left section to display user name, number or assignment information | |
| Door operation | Hinged doors swing outward to 110 degrees, held closed by magnetic seal when not locked, no automatic return mechanism | |
| Free-standing installation | Integral welded base allows placement on level finished floors without wall anchoring for standard use, anchor points provided for optional seismic securing | |
| Corrosion resistance | Stainless steel construction resists moisture and rust, suitable for high-humidity environments such as factory changing rooms or pool areas | |
| Surface cleaning | Smooth brushed stainless steel surface requires no painting, can be wiped clean with standard disinfectants without finish damage | |
| Lock mounting position height from compartment bottom | 180 mm | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 1 | |
|---|---|---|
| Shipping carton dimensions | 960 x 460 x 1860 mm | |
| Gross shipping weight | 82 kg | |
| Shipping volume per unit | 0.82 CBM | |
| On-site assembly time | 20 minutes | |
| 20ft GP container loading quantity | 27 units | |
| 40ft HQ container loading quantity | 66 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set |
Recommended spaces / users / usage modes
| Factory employee changing rooms | 10 individual lockable compartments provide secure personal storage for production line staff, stainless steel construction resists dust and frequent cleaning | |
|---|---|---|
| Office staff personal storage | Compact footprint fits office break rooms or corridor areas to store employee bags, personal items and spare workwear, ventilated design prevents odor buildup | |
| Gym and pool changing areas | Moisture-resistant stainless steel construction withstands high humidity and wet items, slotted vents allow damp clothing to air dry | |
| School and campus facilities | Durable metal construction resists rough student use, individual key locks prevent theft of personal belongings, easy to clean surface meets public facility hygiene requirements | |
| Hospital and cleanroom staff areas | Non-porous stainless steel surface can be disinfected regularly, sealed construction prevents dust accumulation for medical facility environments |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Applicable European standard for office storage furniture, specifies safety and strength requirements for lockable storage cabinets | |
|---|---|---|
| EN 16121:2013 | Applicable standard for non-domestic storage furniture, specifies stability, durability and load performance requirements for commercial lockers |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Applicable standard for storage furniture, specifies static load, door cycle, stability and safety requirements suitable for commercial workplace lockers |
|---|
Standards applicable to China-market projects
| GB/T 3327-2017 | Applicable standard for metal furniture lockers, specifies dimensional tolerance, structural stability and hardware performance requirements for personnel storage cabinets | |
|---|---|---|
| GB/T 13668-2015 | Applicable standard for steel storage cabinets, specifies sheet metal thickness, weld quality, load capacity and surface finish requirements | |
| GB 18584-2001 | Applicable indoor furniture environmental standard, specifies limit values for harmful substance release applicable to coated or sealed metal furniture components |
This product must meet the following technical requirements: 1. GB/T 3327-2017: Applicable standard for metal furniture lockers, specifies dimensional tolerance, structural stability and hardware performance requirements for personnel storage cabinets; 2. GB/T 13668-2015: Applicable standard for steel storage cabinets, specifies sheet metal thickness, weld quality, load capacity and surface finish requirements; 3. GB 18584-2001: Applicable indoor furniture environmental standard, specifies limit values for harmful substance release applicable to coated or sealed metal furniture components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
