Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 900 x 400 x 1800 mm | |
|---|---|---|
| Single compartment internal dimensions | 280 x 370 x 530 mm | |
| Door leaf dimensions | 270 x 520 mm | |
| Frame material thickness | 0.8 mm | |
| Door panel thickness | 0.7 mm | |
| Vent slot diameter per door | 8 mm | |
| Label holder recess size | 90 x 50 mm | |
| Base plinth height | 50 mm | |
| Internal shelf count per column | 2 | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Product net weight | 48 kg | |
|---|---|---|
| Static load per compartment shelf | 25 kg | |
| Total unit static load capacity | 225 kg | |
| Recommended number of users | 9 | |
| Door hinge cycle rating | 50000 open/close cycles | |
| Lock mechanism cycle rating | 20000 lock/unlock cycles | |
| Powder coat abrasion resistance | 1000 revolutions | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main cabinet body | Cold-rolled steel sheet, grey epoxy polyester powder coated | |
|---|---|---|
| Door panels | Cold-rolled steel sheet with stamped vent perforations and integrated card slots | |
| Internal dividers | Cold-rolled steel horizontal and vertical partitions, welded to cabinet frame | |
| Lock assemblies | Zinc alloy keyed cam locks with chrome-plated steel lift handles | |
| Hinges | Steel pin hinges welded to cabinet frame and door inner edge, concealed internal mount | |
| Base plinth | Folded cold-rolled steel base, fully welded to lower cabinet frame | |
| Label holders | Transparent PVC card slots recessed into upper door panel | |
| Surface finish | Matte grey powder coating, 80μm coating thickness | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features

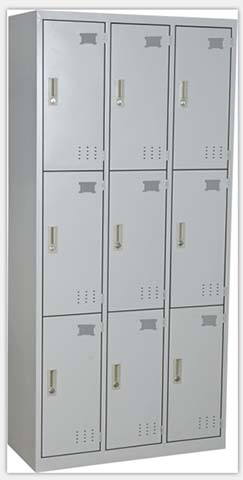

| Compartment configuration | 3 vertical columns, 3 horizontal tiers, total 9 independent locking storage spaces | |
|---|---|---|
| Locking function | Individual keyed cam lock per compartment, two keys supplied per lock | |
| Ventilation function | 12 punched ventilation holes on lower section of each door, promotes air circulation inside compartments to reduce odour buildup | |
| Door operation | Hinged doors open 180 degrees outward to allow full access to compartment contents | |
| Identification function | Recessed card holder mounted at top of every door to display user name or compartment number | |
| Mounting option | Free-standing floor placement, pre-drilled holes on back panel for optional wall anchoring to prevent tipping | |
| Assembly state | Fully welded cabinet frame delivered knocked-down for transport, requires on-site door and lock fitting | |
| Lock handle protrusion from door | 20 mm | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 1 | |
|---|---|---|
| Shipping carton dimensions | 950 x 450 x 1900 mm | |
| Gross shipping weight | 55 kg | |
| Shipping volume per unit | 0.81 CBM | |
| On-site assembly time | 40 minutes | |
| 20ft container loading quantity | 34 units | |
| 40ft HQ container loading quantity | 84 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set |
Recommended spaces / users / usage modes
| Office workspace use | Suitable for open-plan offices and staff areas to store personal items, bags, workwear and accessories for assigned employees | |
|---|---|---|
| Educational facility use | Suitable for schools, colleges and training centres to provide day-use storage for students and teaching staff | |
| Industrial and warehouse use | Suitable for factory changing rooms and warehouse staff areas to store work uniforms, PPE and personal belongings | |
| Public amenity use | Suitable for gyms, leisure centres and public facilities to provide temporary secure storage for visitors and patrons | |
| Configuration recommendation | Recommended to install in banked configurations against walls, anchored to wall surfaces for stability in high-traffic areas |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Applicable office storage furniture standard, specifies safety and strength requirements for lockers used in commercial and public spaces | |
|---|---|---|
| EN 16121:2013 | Applicable non-domestic storage furniture standard, sets requirements for stability, durability and safety for public use storage units |
Standards applicable to China-market projects
| GB/T 3327-2017 | Applicable standard for metal furniture general technical requirements, sets dimensional tolerance, structural strength and coating performance benchmarks for steel storage cabinets | |
|---|---|---|
| GB 18584-2001 | Applicable indoor decoration material standard, sets limit values for formaldehyde and heavy metal emissions from furniture coatings and metal surfaces | |
| GB/T 13668-2015 | Applicable standard for steel bookcases and storage cabinets, specifies structural stability, load bearing and durability test methods for metal storage units |
This product must meet the following technical requirements: 1. GB/T 3327-2017: Applicable standard for metal furniture general technical requirements, sets dimensional tolerance, structural strength and coating performance benchmarks for steel storage cabinets; 2. GB 18584-2001: Applicable indoor decoration material standard, sets limit values for formaldehyde and heavy metal emissions from furniture coatings and metal surfaces; 3. GB/T 13668-2015: Applicable standard for steel bookcases and storage cabinets, specifies structural stability, load bearing and durability test methods for metal storage units; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
