Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 900 x 400 x 1800 mm | |
|---|---|---|
| Single compartment internal dimensions | 280 x 380 x 330 mm | |
| Door thickness | 0.8 mm | |
| Frame and body panel thickness | 0.6 mm | |
| Vent slot size per door | 80 x 50 mm | |
| Card holder slot size | 90 x 40 mm | |
| Base plinth height | 100 mm | |
| Compartment vertical clear opening height | 310 mm | |
| Column width per door column | 300 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Unit net weight | 62 kg | |
|---|---|---|
| Per-compartment static load capacity | 20 kg | |
| Door hinge cycle rating | 50000 open/close cycles | |
| Lock mechanism cycle rating | 20000 lock/unlock cycles | |
| Recommended user capacity | 15 users | |
| Powder coat surface abrasion resistance | 50000 rub cycles | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main body panels | Cold-rolled steel sheet | |
|---|---|---|
| Locker doors | Cold-rolled steel sheet | |
| Surface finish | Epoxy-polyester hybrid powder coat, light gray | |
| Door hinges | Zinc-plated steel butt hinges | |
| Lock mechanisms | Zinc alloy cam locks with keyed cylinders | |
| Vent panels | Integral perforated steel | |
| Label holders | Transparent polystyrene card slots | |
| Base plinth | Formed steel channel | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Individual compartment locking | Each door has a separate key-operated cam lock that secures the door closed at two points to prevent unauthorised access | |
|---|---|---|
| Ventilation design | Each door includes a 16-hole perforated vent panel at the lower edge to enable air circulation within closed compartments, suitable for storing clothing, footwear and personal effects | |
| User identification | Recessed transparent card holder mounted at the top of each door allows insertion of name labels or unit numbers for easy user allocation | |
| Door swing | Each door opens 180 degrees outward on three steel hinges to provide full unobstructed access to the compartment interior | |
| Structural rigidity | Integral formed steel uprights and horizontal dividers create a rigid welded frame that resists racking even when all compartments are fully loaded | |
| Moisture protection | 100mm raised base plinth elevates all compartments above floor level to prevent water damage from floor cleaning or minor spills | |
| Optional locking upgrade | Lock cylinders are field-replaceable to support combination locks, electronic keypad locks or master keyed systems for facility management access | |
| Lock handle height from compartment bottom | 220 mm | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 1 | |
|---|---|---|
| Shipping carton dimensions | 1850 x 950 x 120 mm | |
| Gross shipping weight | 68 kg | |
| Shipping volume per unit | 0.211 CBM | |
| Assembly time per unit | 60 minutes | |
| 20ft container loading capacity | 130 units | |
| 40ft HQ container loading capacity | 320 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set |
Recommended spaces / users / usage modes
| Workplace staff rooms | Suitable for factory, office and warehouse staff change rooms to provide secure personal storage for employees, with 15 individual compartments to support large teams | |
|---|---|---|
| Educational facilities | Ideal for secondary schools, colleges and training centres to assign dedicated locked storage to students for bags, books and personal belongings | |
| Gym and leisure facilities | Appropriate for gyms, sports centres and swimming pools to store clothing, footwear and personal items during workouts or activities, with integrated door ventilation to reduce odour buildup | |
| Public service buildings | Suitable for libraries, community centres and government facilities to provide temporary or permanent secure storage for visitors and staff | |
| Front-of-house retail | Usable in retail back-of-house areas to secure employee belongings, uniforms and personal items away from customer areas |
European market access and chemical requirements
| EN 14073-2:2004 | Office furniture - Storage furniture - Part 2: Safety requirements | |
|---|---|---|
| EN 16121:2013+A1:2017 | Non-domestic storage furniture - Requirements for safety, strength, durability and stability |
US and Canada office-furniture standards
Standards applicable to China-market projects
| GB/T 3327-2017 | Metal furniture - General technical requirements for storage cabinets | |
|---|---|---|
| GB/T 13668-2015 | Steel furniture - Lockers |
This product must meet the following technical requirements: 1. GB/T 3327-2017: Metal furniture - General technical requirements for storage cabinets; 2. GB/T 13668-2015: Steel furniture - Lockers; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.

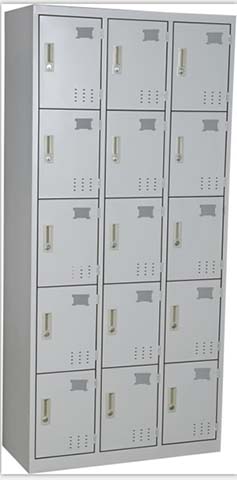

Open Export ToolThe YUANTONG 15-Door Steel Staff Storage Locker, model STL-15D-GRY, presents a clean, functional profile designed for high-traffic shared storage environments. Finished in a matte light gray epoxy-polyester hybrid powder coat, the unit arranges 15 individual lockable compartments across three equal vertical columns, elevated by a rsed formed steel base plinth that creates clearance between compartment bottoms and the floor. Each door features a recessed transparent polystyrene card slot at the top for user identification labels, a 16-hole perforated vent panel at the lower edge, and a centrally positioned key-operated cam lock handle, creating a uniform, orderly visual appearance suitable for shared spaces. Constructed primarily from cold-rolled sheet metal, the locker uses 0.6mm thick steel panels for the cabinet frame, sides, back, and internal dividers, paired with thicker 0.8mm formed-edge doors for improved impact resistance. Each door hangs on three zinc-plated steel butt hinges that support a 180-degree outward swing for unobstructed interior access, with lock cylinders mounted to secure doors at two points. The integral welded steel frame with formed uprights and horizontal dividers delivers rigid structural performance, while the durable powder coat finish resists scratches and rust for long-term use in commercial settings. Each compartment supports static loads sufficient for personal items including bags, clothing, footwear, and books, with locking mechanisms and hinges rated to withstand repeated dly use over extended service life. The integrated vent panels promote consistent r circulation to reduce odour buildup from stored items, while the rsed base protects contents from moisture exposure during floor cleaning or minor spills. Lock cylinders are field-replaceable without door modification, allowing facilities to upgrade to combination locks, electronic keypad locks, or master keyed systems to match operational needs. This locker is well suited for a wide range of commercial and public settings, including factory, office, and warehouse staff change rooms, secondary school and college campuses, gym and leisure facilities, libraries, community centres, government buildings, and retl back-of-house staff areas. Its neutral finish blends with standard public and commercial interior palettes, and the 15 individual compartments support dedicated assigned storage for large teams or user groups. For procurement planning, note that the unit ships as a knock-down flat pack, with assembly completed by two people using basic hand tools. Recommended warranty coverage includes 5 years for the structural frame and 3 years for hardware components. Final material thicknesses, packaging configurations, and finish options should be confirmed directly with the supplier prior to purchase to align with project requirements and facility standards. Contner loading calculations support efficient bulk shipping for large-scale furnishing projects.
