Name: Full Height Double Door Steel Storage Cabinet
Brand: YUANTONG
SKU: V5DW4K

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	900 × 400 × 1800 mm
Single door dimensions	870 x 420 mm
Internal usable storage height	1720 mm
Internal usable depth	360 mm
Adjustable shelf quantity	4 pieces
Shelf thickness	25 mm
Door handle length	120 mm
Bottom plinth height	40 mm
Door frame return flange width	15 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	45 kg
Per-shelf uniform static load capacity	40 kg
Door hinge cycle rating	50000 open/close cycles
Lock mechanism cycle rating	10000 lock/unlock cycles
Shelf adjustment spacing	32 mm
Door hinge open/close cycle rating	50000 cycles
Cam lock lock/unlock cycle rating	10000 cycles
Powder coat film impact resistance	50 kg·cm
Shelf adjustment hole spacing	32 mm
Wall anti-tip connection load rating	50 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main body panels (sides, top, back, bottom)	0.6mm thick cold-rolled steel sheet
Door panels	0.7mm thick cold-rolled steel sheet with formed edge flanges
Adjustable shelves	0.8mm thick cold-rolled steel with reinforced folded edges
External surface finish	Epoxy-polyester hybrid powder coat, light grey RAL 7035
Door handles	Zinc alloy brushed nickel finish pull handles
Lock assembly	Keyed chrome-plated zinc alloy cam lock
Door hinges	Concealed steel butt hinges welded to frame and doors
Shelf support clips	Zinc-plated steel punch-in clips
Adjustable foot pads	Nylon base adjustable leveling feet
Main body panels (sides, top, bottom)	0.6mm thick cold-rolled steel sheet, welded seam construction, deburred edges
Rear back panel	0.5mm thick cold-rolled steel sheet, spot-welded to rear body frame
Leveling feet	Nylon base zinc-plated steel stem adjustable feet, installed at 4 bottom corners

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Door operation	Two side-hinged solid doors open outwards 110 degrees to provide full access to internal storage space
Locking function	Single keyed cam lock secures both doors simultaneously to prevent unauthorized access
Shelf adjustment	Four removable shelves adjust in 32mm increments along pre-punched upright holes to accommodate items of varying heights
Leveling adjustment	Four corner adjustable foot pads compensate for 10mm of floor unevenness to keep the cabinet stable
Anti-tip feature	Pre-drilled holes in rear panel allow wall anchoring to prevent tipping when loaded or doors are fully opened
Storage organization	Adjustable shelves create 5 separate storage compartments suitable for documents, office supplies, tools or archived materials
Lock core diameter	18 mm
Shelf height adjustment	Four removable adjustable shelves reposition in 32mm increments along pre-punched holes in internal uprights, creating variable compartment heights to accommodate items from A4 folders to large storage boxes
Anti-tip safety	Pre-drilled mounting point on rear top frame accepts included wall anchor bracket to secure the cabinet to wall studs, preventing forward tipping when loaded or when doors are fully opened
Door alignment	Concealed hinges include minor adjustment slots to correct door gap alignment during installation, ensuring consistent 2mm gap between doors and frame
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping packages	1 piece
Shipping carton dimensions	950 x 450 x 1850 mm
Gross shipping weight	50 kg
Shipping volume per unit	0.79 CBM
On-site assembly time	15 minutes
20ft GP container loading quantity	36 units
40ft HQ container loading quantity	88 units
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

General office use	Suitable for open plan offices, administrative areas and departmental work zones to store documents, stationery and office supplies, lockable design secures sensitive materials
Industrial and workshop use	Suitable for factory offices, maintenance rooms and warehouse admin areas to store tools, spare parts and operational records, durable steel construction resists knocks and heavy use
Public institution use	Suitable for schools, hospitals and government facilities to store archives, forms and public supplies, easy to clean powder coat finish meets high-traffic maintenance requirements
Storage room and archive use	Suitable for dedicated storage rooms and archive facilities, adjustable shelves accommodate standard A4 and foolscap filing boxes as well as larger stored items
Reception and utility area use	Suitable for reception back-of-house, staff break rooms and utility areas to store cleaning supplies, catering items and spare consumables, neutral grey finish matches standard commercial decor
General open office use	Suitable for open plan office zones, administrative workstations and departmental areas to store A4 documents, stationery and general office supplies, lockable design secures confidential departmental materials
Industrial facility office use	Suitable for factory admin offices, maintenance workshops and warehouse stations to store hand tools, spare parts and operational records, durable steel construction resists impact and heavy daily use
Dedicated archive room use	Suitable for centralized storage rooms and archive facilities, 1800mm height maximizes vertical storage density, adjustable shelves accommodate standard archive boxes, bound documents and filing trays

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Applicable European standard for office storage furniture - safety requirements, specifies stability and strength thresholds for tall storage cabinets
EN 14074:2004	Applicable European standard for office furniture - test methods for storage units, defines procedures for verifying load capacity and door durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3327-2020	Applicable standard for metal office furniture - storage cabinets, specifies dimensional tolerance, structural strength and finish requirements for procurement acceptance
GB/T 1732-2020	Applicable standard for paint film impact resistance testing, validates powder coat durability for office furniture use
GB 18584-2001	Applicable standard for indoor decoration materials - limit of harmful substances in wooden furniture, relevant for any internal accessory components
GB/T 4893.8-2013	Applicable standard for furniture surface abrasion resistance testing, verifies powder coat wear performance for high-traffic office environments
GB/T 10357.5-2011	Applicable standard for furniture mechanical performance testing for storage units, specifies shelf load, door durability and stability test methods

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3327-2020: Applicable standard for metal office furniture - storage cabinets, specifies dimensional tolerance, structural strength and finish requirements for procurement acceptance;
2. GB/T 1732-2020: Applicable standard for paint film impact resistance testing, validates powder coat durability for office furniture use;
3. GB 18584-2001: Applicable standard for indoor decoration materials - limit of harmful substances in wooden furniture, relevant for any internal accessory components;
4. GB/T 4893.8-2013: Applicable standard for furniture surface abrasion resistance testing, verifies powder coat wear performance for high-traffic office environments;
5. GB/T 10357.5-2011: Applicable standard for furniture mechanical performance testing for storage units, specifies shelf load, door durability and stability test methods;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · STEEL-CAB-2DOOR-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · STEEL-CAB-2DOOR-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · STEEL-CAB-2DOOR-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

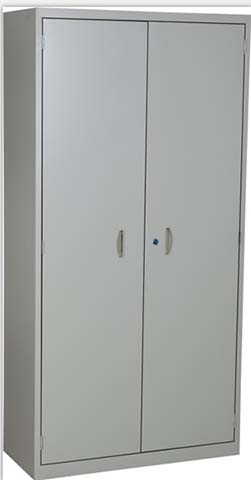

The YUANTONG Full Height Double Door Steel Storage Cabinet, model STEEL-CAB-2DOOR-1800, is a purpose-built office steel storage solution designed for durable, organized secure storage across commercial and select residential settings. Presenting a clean, flush-fronted rectangular form finished in a matte light grey RAL 7035 epoxy-polyester hybrid powder coat, the cabinet features two outward-opening side-hinged solid doors fitted with brushed nickel finish zinc alloy pull handles and a single keyed chrome-plated zinc alloy cam lock positioned between the handles to secure both doors at once. A rsed bottom plinth lifts the cabinet body away from floor contact, while four corner-mounted nylon-base adjustable leveling feet compensate for uneven flooring and prevent surface scratches. Its rigid welded construction uses cold-rolled steel sheet across all panels, with formed door frame return flanges to boost structural rigidity and support consistent door alignment via adjustment slots on the concealed steel butt hinges. The interior comes configured with four reinforced folded-edge adjustable steel shelves, which reposition along pre-punched upright holes to create five flexible storage compartments sized to hold everything from A4 folders and document boxes to larger supplies. Each shelf supports uniform static loads aligned to standard office storage requirements, and pre-drilled points on the rear frame accommodate included wall anchor hardware to prevent forward tipping when the cabinet is loaded or doors are fully open. The smooth, easy-to-clean powder coat finish resists regular contact and wear, while the neutral grey tone coordinates seamlessly with most standard commercial interior palettes. This cabinet is well suited for open plan offices, administrative work zones, and departmental spaces to store documents, stationery, and confidential materials secured by the integral lock. It also performs reliably in industrial settings including factory admin offices, maintenance workshops, and warehouse stations, where its steel construction stands up to regular impact and heavy dly use to hold tools, spare parts, and operational records. High-traffic public institutions such as schools, hospitals, and government facilities can leverage the unit for archive, form, and public supply storage, as its smooth finish supports simple, frequent cleaning. It is also an ideal fit for dedicated archive rooms, where its full-height design maximizes vertical storage density, and for back-of-house reception areas, staff break rooms, and utility spaces to hold cleaning supplies, catering items, and spare consumables. For procurement teams, note that the cabinet ships with a pre-welded main body requiring only minimal on-site installation of shelves, handles, and foot pads. Buyers should confirm final material gauges, packaging configuration, and optional cable opening fitment directly with suppliers prior to final order placement, and plan for appropriate wall anchoring installation to meet standard tall furniture safety requirements.

Full Height Double Door Steel Storage Cabinet Specifications
