Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 900 x 400 x 1800 mm | |
|---|---|---|
| Single compartment internal dimensions | 280 x 360 x 270 mm | |
| Door panel thickness | 250 mm | |
| ID card slot size per door | 90 x 60 mm | |
| Ventilation perforation area per door | 12 perforations arranged 4x3 grid | |
| Handle length per door | 110 mm | |
| Base plinth height | 50 mm | |
| Frame side panel thickness | 0.6 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Net weight per unit | 52 kg | |
|---|---|---|
| Static load capacity per compartment | 20 kg | |
| Door open/close cycle rating | 20000 cycles | |
| Surface coating scratch resistance | 2H pencil hardness | |
| Ventilation airflow per compartment | 12 CFM | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main cabinet frame | Cold-rolled steel sheet 0.6mm thick, epoxy powder coated light gray | |
|---|---|---|
| Locker door panels | Cold-rolled steel sheet 0.8mm thick, matching powder coated finish | |
| ID card label holders | Transparent rigid PVC insert slots | |
| Ventilation perforations | Punched 8mm round holes in 4x3 grid on lower door section | |
| Lock cylinders | Zinc alloy keyed cam locks, 2 keys per door | |
| Door handles | Integrated recessed steel pull handles, formed from door panel material | |
| Internal shelves | 0.5mm thick cold-rolled steel fixed horizontal dividers | |
| Door hinges | Concealed steel butt hinges, welded to frame and door | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features

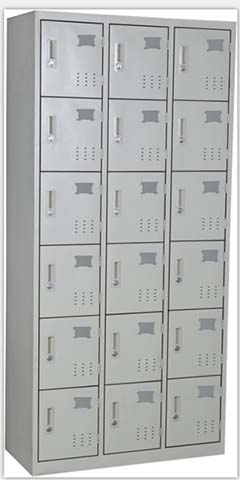

| Compartment access | 18 individual key-locked compartments arranged in 3 vertical columns and 6 horizontal rows, each accessed via independent cam lock | |
|---|---|---|
| Ventilation function | Perforated vent grilles on every door allow continuous air circulation to prevent odor buildup inside closed compartments | |
| Identification function | Transparent PVC label slots on each door allow insertion of user ID cards or number tags for quick compartment assignment | |
| Door operation | Each door swings open 110 degrees on concealed welded hinges, with recessed pull handle for easy grip without protruding hazards | |
| Floor protection | Raised integrated steel plinth base elevates the cabinet 50mm off the floor to prevent moisture damage and simplify floor cleaning | |
| Assembly configuration | Welded frame construction with pre-hung doors, delivered fully assembled for immediate placement without on-site door alignment | |
| Lock mounting position height | 140 mm from compartment bottom | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Packaging quantity | 1 unit per corrugated carton | |
|---|---|---|
| Packaging carton dimensions | 970 x 470 x 1870 mm | |
| Gross packaged weight | 57 kg | |
| Packaged volume per unit | 0.85 CBM | |
| On-site assembly time | 10 minutes | |
| 20ft GP container loading quantity | 26 units | |
| 40ft HQ container loading quantity | 64 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set |
Recommended spaces / users / usage modes
| Workplace changing rooms | Suitable for factory, warehouse or office staff changing areas to store personal items, work uniforms and small personal effects, with individual lockable access per user | |
|---|---|---|
| Educational facilities | Appropriate for school, college or training center student storage, with integrated label slots for clear student assignment and ventilation to prevent mildew on stored items | |
| Public amenity areas | Ideal for gyms, swimming pools, recreational centers or public transport hubs for temporary visitor and patron storage, with separate locks to secure personal belongings during visits | |
| Small business storage | Suitable for retail back-of-house, workshop or small office use to store tools, documents, staff personal items and equipment securely, with heavy-duty steel construction to resist impact damage |
European market access and chemical requirements
| EN 14073-2:2004 | Applicable standard for office storage furniture safety requirements, specifying stability, edge safety and lock performance for free-standing steel storage units | |
|---|---|---|
| EN 16121:2013 | Applicable standard for storage furniture strength, durability and stability, defining test methods for compartment load and door cycle performance |
US and Canada office-furniture standards
Standards applicable to China-market projects
| GB/T 3327-2017 | Applicable standard for metal furniture general technical requirements, specifying dimensional tolerance, coating adhesion and structural strength for steel storage cabinets | |
|---|---|---|
| GB/T 13668-2015 | Applicable standard for steel storage cabinets and lockers, specifying requirements for locking mechanisms, door operation, load capacity and surface finish |
This product must meet the following technical requirements: 1. GB/T 3327-2017: Applicable standard for metal furniture general technical requirements, specifying dimensional tolerance, coating adhesion and structural strength for steel storage cabinets; 2. GB/T 13668-2015: Applicable standard for steel storage cabinets and lockers, specifying requirements for locking mechanisms, door operation, load capacity and surface finish; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
