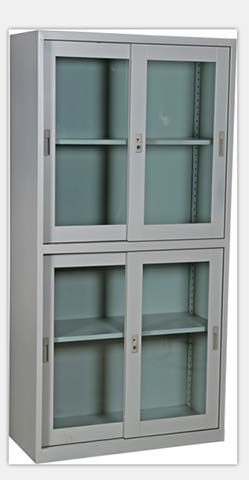

Product supplierStainless Steel Full-Height Four Glass Door Storage Cabinet, 304 grade brushed stainless steel, #4 satin finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 900 × 400 × 1800 mm | |
|---|---|---|
| Upper section internal storage height | 850 mm | |
| Lower section internal storage height | 850 mm | |
| Door panel thickness | 0.8 mm | |
| Cabinet side/back panel thickness | 0.6 mm | |
| Adjustable shelf thickness | 1.2 mm | |
| Shelf adjustment pitch | 50 mm | |
| Door handle length | 120 mm | |
| Door glass thickness | 5 mm | |
| Shelf clear span width | 840 mm | |
| Base plinth height | 50 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Unit net weight | 65 kg | |
|---|---|---|
| Uniform load per adjustable shelf | 40 kg | |
| Total cabinet maximum static load | 160 kg | |
| Cabinet door lock cycle rating | 10000 cycles | |
| Door hinge cycle rating | 50000 cycles | |
| Tempered glass impact resistance | 1 kg steel ball drop from 1m height | |
| Applicable environmental humidity range | 90% RH | |
| Anti-tip restraint load rating | 500 N | |
| Edge band impact resistance | 10 J | |
| Shelf Distributed Load | 30 kg/shelf |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet frame and panels | 304 grade brushed stainless steel, #4 satin finish | |
|---|---|---|
| Door infill panels | 5mm frosted semi-opaque tempered glass | |
| Adjustable shelves | Reinforced 1.2mm stainless steel with rounded safety edges | |
| Door hinges | Stainless steel 180-degree opening butt hinges | |
| Door locks | Zinc alloy chrome-plated keyed cam locks, one lock per double-door set | |
| Door pulls | Recessed vertical stainless steel pull handles | |
| Shelf support brackets | Stainless steel four-point support brackets, engaging vertical slotted rails | |
| Structural divider | 1.0mm stainless steel horizontal panel separating upper and lower cabinet sections | |
| Door perimeter seal | Continuous EPDM rubber gasket mounted to door inner frame | |
| Leveling feet | Nylon-base stainless steel threaded adjustable feet | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Independent section locking | Separate keyed locks for upper and lower double-door compartments, allows restricted access to selected storage sections | |
|---|---|---|
| Adjustable shelf positioning | 4 shelves total (2 per section), adjustable vertically at 50mm increments along internal slotted rails, supports custom storage heights for different sized items | |
| Door opening range | Each hinged door opens 180 degrees flush to cabinet side, allows full unobstructed access to internal storage space without blocking adjacent aisle access | |
| Leveling base adjustment | Integrated adjustable feet at cabinet base corners, compensate for uneven floor surfaces up to 15mm height difference, keeps cabinet plumb and stable | |
| Corrosion-resistant sealed storage | Full overlap door design with continuous rubber gaskets (standard for this cabinet type) reduces dust and moisture ingress into stored contents, suitable for clean environments | |
| Smooth edge safety design | All exposed metal edges are deburred and rounded, eliminates sharp cut edges to prevent injury to users during access and loading | |
| Easy cleaning access | Raised 50mm base plinth allows floor cleaning under cabinet without moving the unit, smooth brushed stainless steel surfaces wipe clean with standard disinfectants | |
| Anti-tip anchoring | 2 pre-drilled mounting points on cabinet rear top rail, includes 2 steel wall anchor brackets to secure cabinet to wall structure, prevents forward tipping during loaded shelf access | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping packages | 1 unit per carton | |
|---|---|---|
| Shipping carton dimensions | 960 x 460 x 1860 mm | |
| Gross shipping weight | 75 kg | |
| Shipping volume per unit | 0.82 CBM | |
| Assembly time for knock-down configuration | 60 minutes for two trained technicians | |
| 20ft GP container loading quantity | 27 units | |
| 40ft HQ container loading quantity | 66 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Medical facility storage | Suitable for hospital wards, clinics, and treatment rooms to store medical supplies, sterile instruments, and patient care items, corrosion-resistant stainless steel construction withstands frequent disinfectant cleaning | |
|---|---|---|
| Laboratory and cleanroom use | Applicable for laboratory, pharmaceutical, or cleanroom environments to store lab consumables, glassware, and documentation, non-porous surfaces prevent contaminant buildup | |
| Office document and supply storage | Suitable for general office, archive, or administrative spaces to store files, office supplies, and reference materials, frosted glass doors present a neat appearance while concealing stored contents | |
| Food service and commercial kitchen storage | Usable in commercial kitchens, catering facilities, or food processing areas to store utensils, dry goods, and service supplies, stainless steel material meets food-contact adjacent hygiene requirements | |
| Workshop and industrial storage | Applicable for clean industrial workshops, inspection rooms, or maintenance areas to store tools, inspection equipment, and spare parts, durable steel construction withstands regular industrial use |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Applicable European standard for office storage furniture, specifies safety requirements for fixed storage cabinets including stability, edge safety, and load capacity | |
|---|---|---|
| EN 12150-1:2015 | Applicable European standard for thermally toughened soda lime silicate safety glass, specifies mechanical strength and fragmentation safety for glass used in furniture |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3327-2016 | Applicable standard for metal office storage furniture, specifies dimensional tolerance, structural strength, and stability requirements for fixed metal cabinets | |
|---|---|---|
| GB/T 24821-2009 | Applicable standard for office furniture hardware locks, specifies lock durability, security, and corrosion resistance requirements | |
| GB 15763.2-2005 | Applicable standard for tempered safety glass used in furniture, specifies impact resistance, fragmentation safety, and optical requirements | |
| GB/T 4893.9-2013 | Applicable standard for furniture surface corrosion resistance testing, specifies test methods for metal furniture finish resistance to common disinfectants and cleaning agents |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3327-2016: Applicable standard for metal office storage furniture, specifies dimensional tolerance, structural strength, and stability requirements for fixed metal cabinets; 2. GB/T 24821-2009: Applicable standard for office furniture hardware locks, specifies lock durability, security, and corrosion resistance requirements; 3. GB 15763.2-2005: Applicable standard for tempered safety glass used in furniture, specifies impact resistance, fragmentation safety, and optical requirements; 4. GB/T 4893.9-2013: Applicable standard for furniture surface corrosion resistance testing, specifies test methods for metal furniture finish resistance to common disinfectants and cleaning agents; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
