PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	620 × 780 × 1090 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	18 kg
Recommended user weight capacity	160 kg
Recommended daily user size	Up to 1850 mm tall and 100 kg body weight
Back static load acceptance reference	160 kg
Seat impact durability reference	100,000 cycles
Floor glide sliding durability	50,000 cycles
Frame deflection under 160 kg static load	10 mm maximum
Color count	1
Warranty period	3 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Black leather-look upholstered surface with visible horizontal creasing
Back upholstery	Black padded upholstered panel with integrated rolled head section
Seat cushion core	Molded polyurethane foam, 90 mm thick at front roll
Back cushion core	Shaped polyurethane padding, 70 mm maximum thickness
Cantilever frame	Polished chrome-plated steel tube, 32 mm diameter
Arm supports	Continuous chrome-finish steel loop connected to seat and back frame
Arm pads	Black padded upholstered pads following the curved steel supports
Internal back support	12 mm molded board or bent plywood carrier with steel fixing plates
Seat support board	12 mm load-distributing board over the steel seat cradle
Floor glides	Black injection-molded polymer glides at four ground-contact points
Edge tailoring	Sewn rolled-edge upholstery with 8 mm seam pitch as a procurement target
Fasteners	Steel bolts and locking nuts at arm, back, and seat-frame joints

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Fixed seating action	Cantilever base provides controlled vertical flex without swivel, tilt, or caster movement
Height adjustment	No gas lift or height adjustment; fixed 450 mm seat height
Back support	Two-zone padded back combines lumbar panel and rolled upper shoulder support
Arm support	Curved continuous-loop arms provide fixed forearm support at 680 mm floor height
Floor protection	Four polymer glides distribute load and reduce marking on hard floors
Stacking capability	Non-stacking high-back executive chair
Assembly requirement	Back and arms align to the cantilever cradle with bolted steel connection plates
Replaceable wear parts	Glides and arm pads should be removable for replacement without replacing the frame
Recommended daily use duration	8 hours per user in executive conference applications
Safety use limit	Not designed as a stool, recliner, or multi-person bench
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Executive conference room	Use around boardroom tables where a fixed 450 mm seat and high-back support suit long meetings
Reception or visitor area	Place in front of executive desks or in visitor zones where rolling chairs are unnecessary
Management office	Pair with an executive desk for temporary guest seating without matching the task chair mechanism
Meeting suites	Specify in uniform sets of 4 to 20 chairs around fixed conference tables
Hard-floor office environments	Recommended for tile, wood, laminate, and sealed concrete floors using polymer glides
Commercial interiors with restrained styling	Suitable for black, gray, or monochrome palettes and polished-metal accents
Not recommended for adjustable workstation tasks	Use as a visitor chair rather than an ergonomic task chair because it lacks height, tilt, and swivel controls
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139 office seating	Use strength, durability, and safety requirements for non-domestic visitor and conference chairs
EN 1022 stability	Verify front, rear, and side stability of the fixed cantilever chair on level floors
EN 12520 seating safety	Use general mechanical safety requirements for strength and stability verification

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1 general-purpose office chairs	Use back, seat, leg-strength, and stability tests as an enhanced procurement benchmark
ANSI/BIFMA X5.4 lounge and public seating	Consider public-seating load and durability tests for high-traffic reception use

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.2 furniture mechanical test	Apply chair back-strength and durability test methods for fixed office seating
GB/T 10357.3 furniture mechanical test	Apply chair seat strength and impact durability methods to seat and cantilever frame
GB 18584 indoor furniture limit	Use for formaldehyde and hazardous-substance screening if wood-based panels are present

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.2 furniture mechanical test：Apply chair back-strength and durability test methods for fixed office seating；
2. GB/T 10357.3 furniture mechanical test：Apply chair seat strength and impact durability methods to seat and cantilever frame；
3. GB 18584 indoor furniture limit：Use for formaldehyde and hazardous-substance screening if wood-based panels are present；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · EC-CB-HB-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · EC-CB-HB-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EC-CB-HB-01打开导出工具

页面快速操作

发布采购询价

产品描述

The Black High-Back Executive Visitor Chair presents a formal, structured seating solution for conference and guest settings. Its tall black upholstered back includes a rolled head section and a defined lumbar zone, creating a composed executive silhouette. A padded seat, integrated curved arm pads, and continuous chrome-finished steel loop supports reinforce the tailored appearance, while the polished cantilever frame gives the chair a clean, open base without casters or adjustment controls. Construction combines comfort-oriented padding with a rigid steel structure. The seat uses molded polyurethane foam with a 90 mm thick front roll, while the shaped back padding reaches 70 mm and provides a two-zone support arrangement for the lumbar area and upper shoulders. A load-distributing seat board sits above the steel cradle, and the back is supported by a molded board or bent plywood carrier with steel fixing plates. The frame is made from polished chrome-plated steel tube, and four black polymer glides are fitted to help reduce marking on hard floors. The chair has a fixed seating action: the cantilever base allows controlled vertical flex, but does not swivel, tilt, roll, or adjust in height. Its fixed seat height and stable forearm support make it suited to prolonged meetings and visitor use rather than active task work. The model is non-stacking and requires bolted assembly of the back and arms to the cantilever cradle. It is well suited to boardrooms, executive reception areas, management offices, and meeting suites where a consistent, restrained appearance is preferred. The black and polished-metal finish coordinates naturally with monochrome interiors, gray or black palettes, and conference rooms with tile, wood, laminate, or sealed concrete floors. It can be specified in uniform sets around fixed boardroom tables or placed opposite executive desks for guest seating. Procurement teams should note the fixed height, non-stacking form, and hard-floor glides when comparing this model with mobile task chairs or stackable visitor seating. Each set is supplied in two cartons and requires assembly. The recommended user profile accommodates people up to 1850 mm tall and 100 kg body weight, with a rated user weight capacity of 160 kg. The listed durability references include a 100,000-cycle seat impact test, 50,000-cycle glide sliding test, and maximum frame deflection of 10 mm under a 160 kg static load, supporting evaluation for regular commercial meeting use.

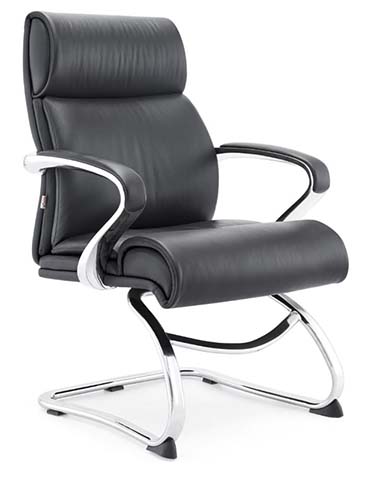

Black High-Back Executive Visitor Chair with Polished Cantilever Base Specifications
