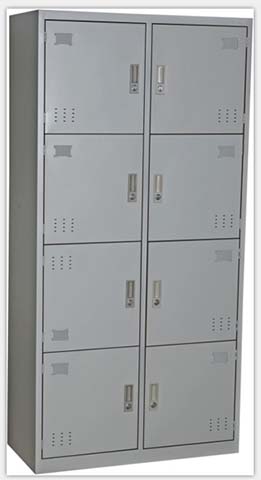

Product supplier8-Door Vertical Metal Storage Locker, Dual Column 4-Tier, 0.8mm cold-rolled steel sheet, light grey epoxy-polyester powder coated finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 900 × 400 × 1800 mm | |
|---|---|---|
| Single compartment internal dimensions | 420 x 370 x 410 mm | |
| Door panel thickness | 0.8 mm | |
| Cabinet body panel thickness | 0.6 mm | |
| Vent grille perforation diameter | 6 mm | |
| Recessed handle projection | 12 mm | |
| Base plinth height | 50 mm | |
| Card holder slot size | 90 x 50 mm | |
| Internal shelf thickness | 0.6 mm | |
| Center vertical partition thickness | 0.6 mm | |
| Door swing angle | 180 degrees | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight per unit | 45 kg | |
|---|---|---|
| Per-compartment static load capacity | 25 kg | |
| User capacity | 8 individual users | |
| Door open/close cycle durability | 50000 cycles | |
| Powder coating abrasion resistance | 2000 cycles | |
| Lock security rating | Keyed to differ, 2 keys per lock | |
| Unit stability floor load | 100 kg horizontal force without tipping | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Door panels | 0.8mm cold-rolled steel sheet, light grey epoxy-polyester powder coated finish | |
|---|---|---|
| Cabinet frame, sides and back | 0.6mm cold-rolled steel sheet, matching light grey powder coated finish | |
| Horizontal tier partitions | 0.6mm cold-rolled steel, welded to internal frame for rigid compartment separation | |
| Vertical center divider | 0.6mm cold-rolled steel, welded to top and base to separate 2 door columns | |
| Door hinges | 1.5mm steel pin hinges, zinc plated for corrosion resistance, welded to door and side frame | |
| Cam locks | Zinc alloy housing, brass lock cylinder, chrome plated finish, fitted with 2 brass keys per compartment | |
| Recessed door handles | Zinc alloy pull, chrome plated finish, integrated with lock cylinder | |
| Vent perforations | Punched 6mm round holes in lower section of every door, no additional grille insert | |
| Card holders | Recessed steel slot on upper section of each door, clear plastic label window insert | |
| Base plinth | 1.0mm folded steel base, welded to cabinet bottom for floor support | |
| Surface finish | Epoxy-polyester electrostatic powder coat, 80 micron film thickness, acid washed and phosphated pre-treatment | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Individual locking compartments | 8 separate lockable doors, each fitted with independent key cam lock to secure personal belongings for separate users | |
|---|---|---|
| Door ventilation | Punched perforated vents on each door enable continuous air circulation to prevent musty odors from stored clothing or bags | |
| User identification | Recessed card holder slot on each door holds removable name or number labels for easy locker assignment | |
| Flush door design | Recessed handles and no external protrusions eliminate snag hazards in high-traffic walkways | |
| Freestanding installation | Reinforced folded steel base allows placement on level hard floors without wall fixing, optional anti-tip kit available for high-use areas | |
| Full compartment access | Hinged doors open 180 degrees to provide unobstructed access to full compartment interior for loading and cleaning | |
| Smooth edge treatment | All steel panel edges are folded and deburred to eliminate sharp edges for user safety | |
| Stacking compatibility | Reinforced top frame supports vertical stacking of identical units for multi-tier bank installations | |
| Lock cylinder diameter | 18 mm | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping packages | 1 | |
|---|---|---|
| Shipping carton dimensions | 950 x 450 x 1850 mm | |
| Gross shipping weight | 50 kg | |
| Shipping volume per unit | 0.79 CBM | |
| On-site assembly time | 20 minutes | |
| 20ft GP container loading quantity | 36 units | |
| 40ft HQ container loading quantity | 92 units | |
| Inner packaging material | 5-layer corrugated carton, expanded polystyrene corner protectors, PE stretch wrap, plastic hardware bag with keys and installation instructions | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office staff changing rooms | Provides secure individual storage for personal items, bags and work clothing for office and facility employees | |
|---|---|---|
| Factory and workshop staff areas | Durable steel construction withstands heavy daily use in industrial environments for worker personal storage | |
| School and university dormitory/campus facilities | 8 individual compartments serve student storage needs with ventilated design suitable for sports gear and books | |
| Gym and fitness center changing areas | Ventilated doors prevent odor buildup from stored workout clothing and athletic gear | |
| Public service and government facility cloakrooms | Keyed individual locks provide secure temporary storage for visitors and staff in public buildings | |
| Modular locker bank configurations | Standard 900mm width allows multiple units to be bolted side by side to create continuous locker rows for high-capacity facilities |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Applicable European standard for office storage furniture safety and structural strength requirements for steel lockers | |
|---|---|---|
| EN 16121:2013 | Applicable standard for non-domestic storage furniture durability, stability and strength performance requirements | |
| EN 1023-2:2000 | Applicable test standard for office furniture storage units stability under vertical and horizontal load |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3327-2017 | Applicable standard for metal storage furniture dimensional tolerance, structural strength and coating performance requirements for steel lockers | |
|---|---|---|
| GB 18584-2001 | Applicable indoor furniture hazardous substance emission limit for formaldehyde and heavy metal content from surface coatings | |
| GB/T 4893.8-2013 | Applicable test standard for furniture surface coating abrasion resistance for powder coated metal surfaces |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3327-2017: Applicable standard for metal storage furniture dimensional tolerance, structural strength and coating performance requirements for steel lockers; 2. GB 18584-2001: Applicable indoor furniture hazardous substance emission limit for formaldehyde and heavy metal content from surface coatings; 3. GB/T 4893.8-2013: Applicable test standard for furniture surface coating abrasion resistance for powder coated metal surfaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
